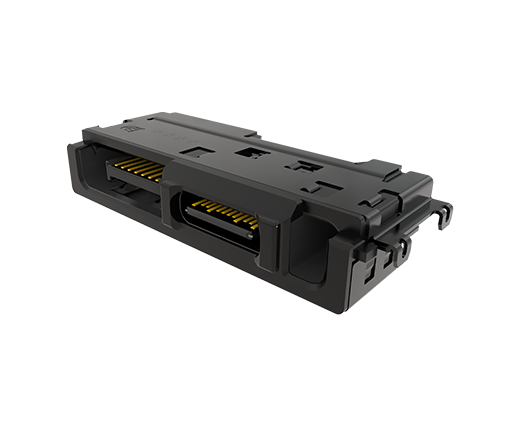

Feature:
- Basic Info.:
·Pitch:1.27mm
·Pin No.:400(50pin x 8row)
·Height:5.61mm
·Mating Height:6.9mm
·L*W*H=68.48*12.14*5.61
- Mechanical
·Mating force:18kgf Max.
·Unmating force:0.23kgf Max.
·Durability:1000cycles
- Electrical
·Power supported:1.1A/pin
·High frequence:SATA3.0/USB3.0(5Gps)
–Feature:
·Plug side
·BGA type

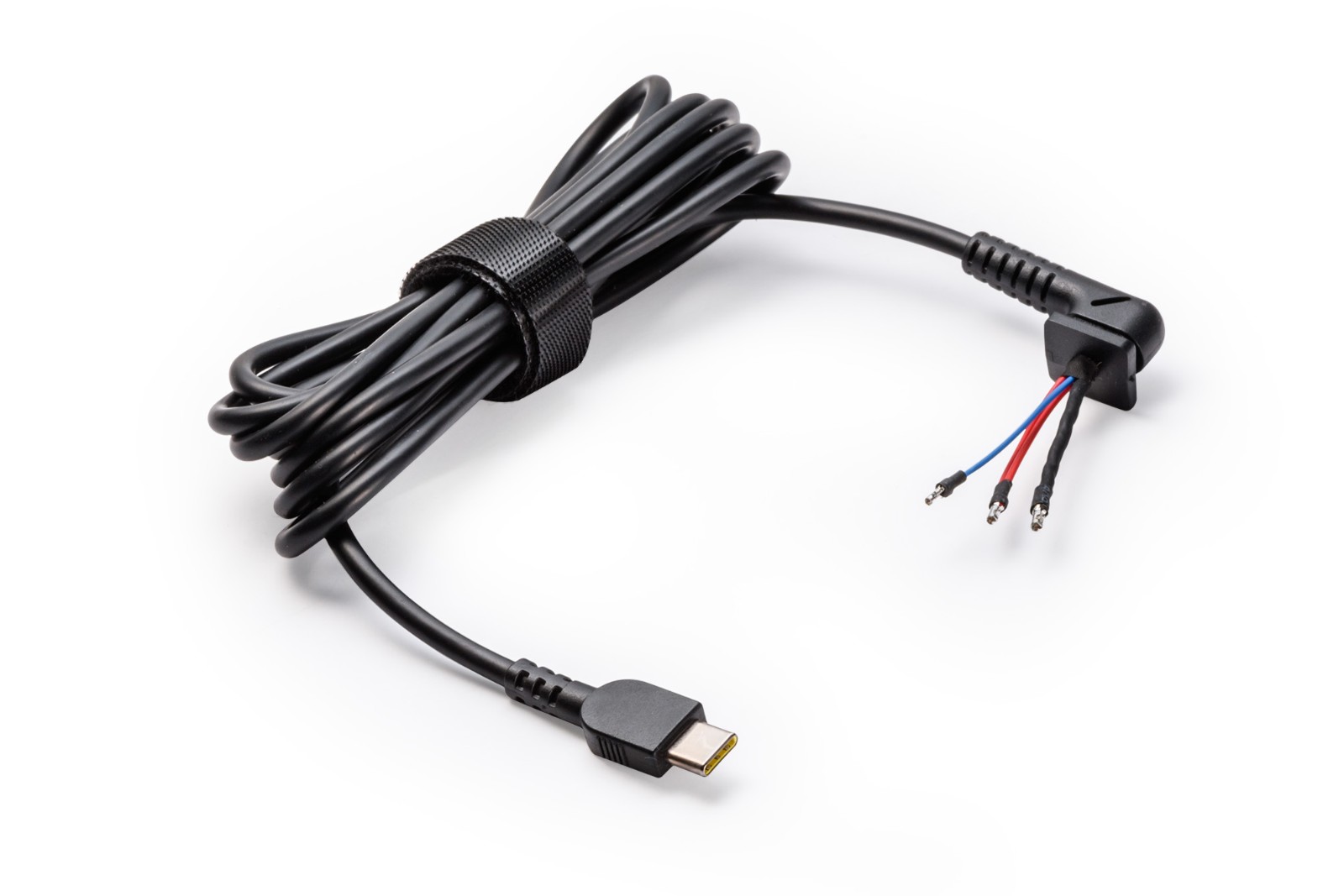

Feature:
- Basic Info:
·Constituent: Type C plug+Type C plug+Discrete cable
·L=1800mm
- Mechanical
·Mating force:5~20N
·Unmating force:5~20N
·Durability:10,000cycles
·Bending:1,800cycles
- Electrical
·Power:3A
·Voltage:22V
·High frequency:USB 2.0
–Feature:
·Overmolding housing
·Black cable

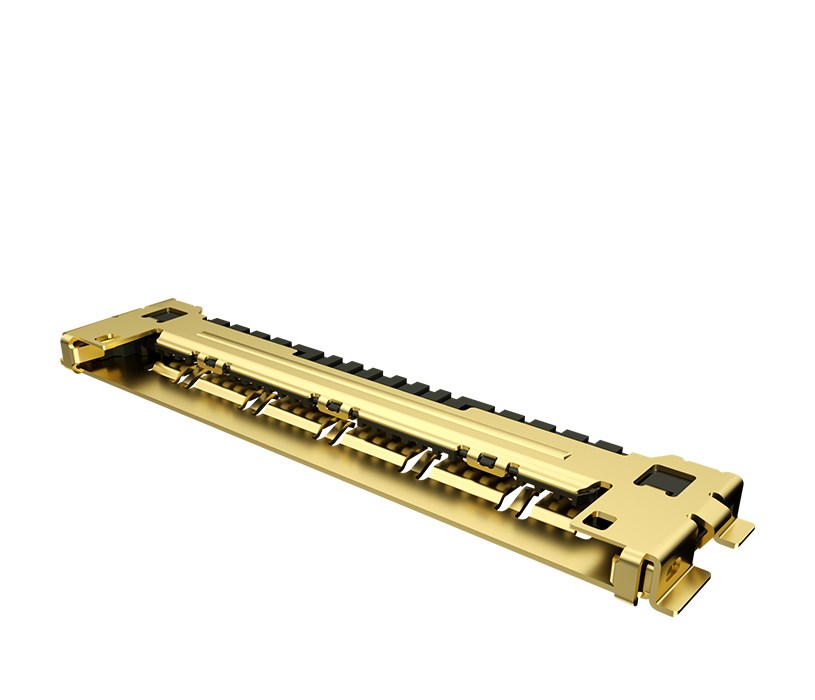

Feature:
- Basic Info.:
·Pitch:0.4mm
·Pin No.:30~40
·Height:1.0mm
·Mating Height:1.0mm
·L*W*H=(Pin.No.*0.4+5.2)*4.15*1.0
- Mechanical
·Mating force:
30~40pin:14.55N~19.40N(Max.)
·Unmating force:
30~40pin:3.00N~4.00N(Min.)
·Durability:30cycles
- Electrical
·Power:0.5A/pin
·High frequence:SATA3.0/USB3.0(5Gps)
–Feature:
·Board Side
·Right angle Type
